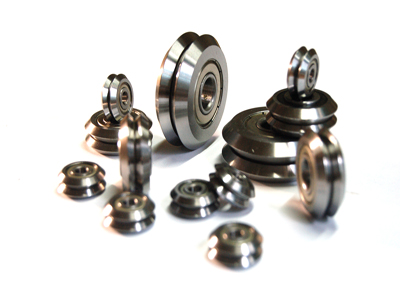

Track rollers with "W" profile - type VW

• VW Guide Wheels are the main components of the Linear Motion system, they can be widely used in the industrial robot, cutting machine, motion track, production flow and so on.
• The surface of outer ring is the "W" profile formed by the two "V" with an angle of 90 degrees. The internal or external side face can be matched separately with the concave or protrudable track that both have a "V' profile with the angle of 90 degrees, and also the internal side face can be matched well with the cylindrical track.
• Wheels feature the internal design of double row angular contact ball bearing and a thick-walled outer ring, so the wheels can accommodate higher loads.
• Wheels are made of the high-quality bearing steel, processed by heat treatment and precision grind, and are filled with a long service life, high-grade and multi-purposes grease. Wheels mantle the metal shield or rubber seal (suffixX) to prevent the dust. All-Around also can provide the wheels with the concentric or eccentric bushings, as well as the wheels made from the corrosion resistance stainless steel.

■  Characteristics of the guide system that series W wheels are applied :

1. Low resistance, long service life, widely-use

After precision ground, the roughness of working surface of the series W wheels is fine and the angle of 90 degrees is accurate. The wheels have well parallelism between the "W" profile groove and the mount planes of inner ring relatively. When the wheels running, the stresses between the wheel and track is in equality and the friction resistance is low.

2. Easy installation

After wheels assembled the concentric or eccentric bushing, installation can be made convenient. To adjust the eccentric one's eccentricity, the wheels can get the fitting preload.

* Wheels are made of the stainless steel ( 440C ).

Guide Wheel No.	Weight	Dimensions (mm)						Load Ratings
All-Around	≈(g)	d	D	B	A1	A2	rs	Cw (KN)	Cow(KN)
VW W0	5	4	14.84	6.35	5.94	9.12	0.3	1	0.5
VW W0X	5	4	14.84	6.35	5.94	9.12	0.3	1	0.5
VW W1	11	4.763	19.56	7.87	7.93	11.86	0.3	2.2	1
VW W1X	11	4.763	19.56	7.87	7.93	11.86	0.3	2.2	1
VW W2	38	9.525	30.73	11.1	12.7	18.24	0.3	4.9	2.5
VW W2X	38	9.525	30.73	11.1	12.7	18.24	0.3	4.9	2.5
VW W3	130	12	45.72	15.88	19.05	26.98	0.6	9.4	4.9
VW W3X	130	12	45.72	15.88	19.05	26.98	0.6	9.4	4.9
VW W4	280	15	59.94	19.05	25.4	34.93	1	14.8	8.2
VW W4X	280	15	59.94	19.05	25.4	34.93	1	14.8	8.2
VW W4XL	580	22	75.39	25.4	31.75	44.45	1.1	20.6	14.3
VW W4XXL	580	22	75.39	25.4	31.75	44.45	1.1	20.6	14.3
VW W1SSX*	11	4.763	19.56	7.87	7.93	11.86	0.3	2.2	1
VW W2SSX*	38	9.525	30.73	11.1	12.7	18.24	0.3	4.9	2.5
VW W3SSX	130	12	45.72	15.88	19.05	26.98	0.6	9.4	4.9
VW W4SSX*	280	15	59.94	19.05	25.4	34.93	1	14.8	8.2
