Track rollers with "V" groove profile - Vee'd Bearings

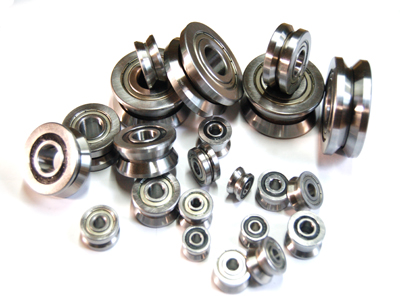

• Series LV bearings can be widely used in the cylindrical track or " V " profile track with an angle of 120 degrees. Different from the series LFR bearings, series LV bearings are more adaptable to the different track sizes. Each type can be applied with a larger range of track diameters. They are widely used for the heavy-duty track, mobile equipment, wire straightening machine and so on.
• Bearings take the internal structure design of double row angular contact ball bearings and have a thick-walled outer ring, so the bearings can accommodate higher loads.
• Bearings are made of the high-quality bearing steel, processed by heat treatment and precision grind, and are filled with a long service life, high-grade and multi-purposes grease. Bearings take the metal shield to prevent the dust. All-Around also can provide the bearings with concentric or eccentric pivot.
• The bearings have an undercut on its bottom of groove on the outer ring. If the application disallow this undercut, All-Around can meet customer's technical requirement. Also All-Around can accept the bearings with various angle of " V " profile.

■  Characteristics of the guide system that series LV bearings are applied :

1. Low resistance, long service life, widely-uses

The roughness of the " V " profile surface can be reached to Ra0.32 processed by precision grind. The bearings have well parallelism between the "V" profile groove and the mount planes of inner ring relatively. When bearings working, the stresses between the bearing and cylindrical track is in equality and the friction resistance is low.

2. Easy installation

After bearing assembled the concentric or eccentric pivot, installation will be convenient. To adjust the eccentric one's eccentricity, the bearing can get the fitting proload.

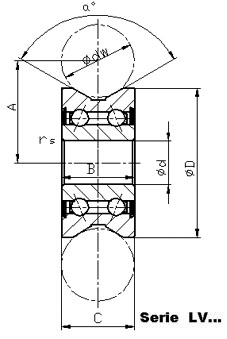

Track Roller No.	Weight	Dimensions (mm)								Load Ratings
All-Around	≈(g)	dw	d	D	b	C	A	α	rs	Cw (KN)	Cow(KN)
LV 20/7 ZZ	17	10	7	22	11	11	14.5	120	0.3	3.78	2.05
LV 20/8 ZZ	49	10	8	30	14	14	18.1	120	0.3	5.13	2.67
LV 202-38 ZZ	87	10	15	38	17	17	22.25	120	0.5	8.47	5.37
LV 202-40 ZZ	110	10	15	40	18	18	22	120	0.5	8.47	5.37
LV 201 ZZ	130	20	12	41	20	20	28	120	0.3	8.47	5.37
LV 201-14.2RS	107	14	12	39.9	20.1	18	24	100	0.5	8.9	5
LV 202-41 ZZ	116	20	15	41	20	20	28	120	0.5	8.47	5.37
LV 203 ZZ	325	20	17	58	25	25	35	120	0.5	14.66	9.1
LV 204-57 ZZ	290	30	20	57	22	22	41	120	0.6	14.66	9.1
LV 204-58 ZZ	310	30	20	58	25	25	41	120	0.6	14.66	9.1
